Specifying a Diesel Generator for Australia: 50 Hz, RCM Marking and AS/NZS 3010

What You Will Learn

• Why an Australian Specification Is Not a Copy of a European One
• The Electrical Baseline: Voltage, Frequency and the Rules Behind Them
• Heat, Dust, Distance: The Australian Environment
• Prime Power and Standby: Which Rating Applies
• What an Australian Specification Should Contain
• What to Check When Comparing Suppliers
• A Note on Documentation for Site Acceptance
• How We Approach Australian Projects
• FAQ

Why an Australian Specification Is Not a Copy of a European One

Buyers outside Australia often assume that a 50 Hz generator set is a 50 Hz generator set wherever it goes. That assumption survives until the first Australian project specification arrives, and then it does not.

Australia is a 50 Hz market at 230/400 V, which puts it in the same electrical family as Europe, the Middle East and much of Asia. But the similarity largely ends at the voltage. Australia has its own electrical installation rules, its own product compliance marking, a climate that reaches well beyond European design temperatures across large parts of the continent, and a pattern of use - remote sites, long fuel distances, unattended operation - that changes which generator is the right one.

This article sets out what an Australian specification actually requires, and where a standard set needs to change to meet it. It is written for buyers and specifiers who are selecting equipment now, and for suppliers who want to know what to prepare.

The Electrical Baseline: Voltage, Frequency and the Rules Behind Them

The starting point is straightforward and the details matter.

Voltage and frequency. Australia operates at 230 V single-phase and 400 V three-phase, 50 Hz. That is a nominal 230/400 V system, and a generator configured for 230/400 V 50 Hz at 1500 rpm is electrically conventional. Where confusion arises is with older references to 240/415 V, which appear in older documentation and in some legacy equipment nameplates. A set built for 230/400 V is the correct modern specification, and the two are compatible in practice.

The installation rules. Australia has its own wiring rules - AS/NZS 3000 - rather than adopting the IEC 60364 series wholesale. For generating set installations specifically, AS/NZS 3010 applies: *Electrical installations - Generating sets*. It covers how a generating set is connected, how it is isolated from the supply network, how changeover is arranged and how the installation is protected. A specifier who has only worked with IEC-based installations should read AS/NZS 3010 before finalising the electrical design, because it governs how the set is connected rather than what the set is.

Compliance marking. Australia requires the RCM (Regulatory Compliance Mark) for electrical and electronic equipment supplied to the market. RCM covers electromagnetic compatibility and, where applicable, electrical safety requirements. It is not the same as CE marking, and a CE-marked set is not automatically an RCM-marked one. Buyers should confirm with the supplier which marking the equipment will carry, and who is responsible for the supplier declaration that sits behind it.

Earthing and the MEN system. Australian low-voltage installations use a multiple earthed neutral arrangement. When a generating set operates as an alternative supply, the earthing and neutral arrangement has to be coordinated with the installation rather than treated as a standalone item. This is a design detail, but it is one that shows up in inspection, so it belongs in the specification rather than in the commissioning conversation.

Isolation and signage. AS/NZS 3010 and the wiring rules impose requirements on isolation, labelling and the identification of the alternative supply point. These are cheap to meet at the design stage and expensive to retrofit, so they should be written into the specification as requirements, not left to the installer.

Heat, Dust, Distance: The Australian Environment

Electrical compliance is the part that can be checked against a document. The environment is the part that determines whether the set survives.

Ambient temperature. Australian design temperatures are high. Inland areas routinely see 40 °C and above in summer, and equipment installed in an unshaded container or a site compound can see significantly more. Engine output falls as air density falls, so a set rated at 25 °C carries a lower rating at 45 °C. The derating is published by the engine manufacturer and should be applied before the set is selected, not discovered afterwards. The practical consequence is that a specification written around a nominal figure may need a larger machine to deliver the required output on the hottest day of the year.

Cooling system design. High ambient temperature reduces the temperature difference available for heat rejection, so the radiator and the airflow path have to be sized for the site rather than the laboratory. In a canopy, the air path matters as much as the radiator: a canopy that is adequate at 35 °C can be marginal at 45 °C if the intake and discharge are restricted.

Dust. Inland and mining sites are dusty. Dust loading on the air filter, the radiator core and the alternator windings is a maintenance reality, and the specification should reflect it - filtration matched to the site, accessible filters, and a defined cleaning interval. A set that is correct for a coastal city can be the wrong set for a mine site a thousand kilometres inland.

Cyclones and storms. Northern Australia is cyclone country. Where a set is installed outdoors or in a structure, wind loading, enclosure fixings, louvre design and the security of the exhaust and cable entries all become design inputs. This is a structural question rather than a generator question, but it changes what the enclosure has to be.

Coastal corrosion. Much of the Australian population lives near the coast, and salt-laden air attacks enclosures, fasteners and electrical connections. Corrosion-resistant finishes and appropriate materials are not optional extras in those locations; they are the difference between a set that lasts its design life and one that does not.

Prime Power and Standby: Which Rating Applies

Australia uses both patterns heavily, and they are not interchangeable.

Standby. Most suburban and commercial installations are standby: the set exists to cover a network outage. The set runs occasionally, and the electrical design is dominated by the changeover arrangement and by AS/NZS 3010. Standby sets also carry the maintenance risk of long idle periods, so a periodic load test belongs in the operating regime.

Prime power. Remote sites, mine camps, construction and agricultural operations often run generators as the primary supply, sometimes for years. Prime-rated operation means continuous duty at a defined load profile, with the maintenance schedule built around running hours rather than around calendar time. Choosing a standby-rated set for continuous duty is one of the most expensive mistakes available in this market, because the set will not last the intended service life.

The fuel logistics question. A prime power site in remote Australia is supplied by truck, over long distances, with fuel quality that varies. Fuel storage capacity, filtration and water separation are therefore sized around delivery intervals rather than convenience. The generator becomes part of a fuel supply chain, and the specification should treat it that way.

Service access. Distance also drives serviceability. Where the nearest technician may be hours or days away, the set should be specified for ease of service - accessible filters and drains, clear labelling, documented service points - and the spares holding should reflect the lead time to the site rather than the lead time to a capital city.

What an Australian Specification Should Contain

A specification that produces the right machine covers eight things, and omitting any one of them tends to surface later.

1. Output and rating. The required kVA, the duty (standby or prime) and the load profile, including the largest motor to be started and its starting method.
2. Voltage and frequency. 230/400 V, 50 Hz, three-phase and single-phase requirements, and the configuration of the output.
3. Compliance. RCM marking, the supplier declaration, and confirmation that the installation will comply with AS/NZS 3010 and AS/NZS 3000.
4. Site conditions. Design ambient temperature, altitude, dust and corrosion exposure, coastal or inland, cyclone exposure.
5. Enclosure. Type, IP rating, noise level at a stated distance, corrosion protection, and whether the set is indoor, outdoor or containerised.
6. Control and changeover. ATS or manual, automatic start, protection functions, remote monitoring where the site is unattended.
7. Documentation. Test records, drawings, operation and maintenance manuals, and the compliance documents that the site needs for acceptance.
8. Service and spares. The maintenance interval, the spares holding, and the realistic response path for the site location.

Filling those eight items in produces a specification that can be quoted against, and a quotation that can be compared with another supplier on the same basis.

What to Check When Comparing Suppliers

A quoted price for an Australian project is only comparable if the underlying scope is comparable, and in this market the differences are usually in the items that are easiest to leave out.

• Is the rating corrected for the site temperature? A set quoted at its nominal rating for a 45 °C site is not the same offer as one quoted at the derated rating for that site.
• Which compliance marking is being offered, and by whom? RCM is a supplier declaration; ask who signs it and on what evidence.
• Is the enclosure specified for the site, or for the region? Coastal corrosion protection and inland dust filtration are different requirements.
• Which documentation is included? Test records and as-built drawings are frequently the first omissions, and the hardest to obtain after the order.
• What is the spares and service position? For a remote site, this matters more than a marginal difference in purchase price, because the cost of an outage is measured in days, not dollars.

A Note on Documentation for Site Acceptance

Australian projects, particularly those connected to a network or delivered into an industrial site, tend to require documentation before the set is accepted. Preparing it at the factory is far easier than assembling it afterwards. The usual items are: the factory test record with the measurements taken, the wiring and control drawings as built, the operation and maintenance manuals, the compliance documentation and supplier declaration, and the packing and inspection records for the shipment.

Where a project has an inspection and test plan, the generator supplier should be able to work to it. That is a normal requirement for equipment entering an industrial site, and a supplier who cannot respond to it is a risk to the project schedule rather than to the equipment itself.

How We Approach Australian Projects

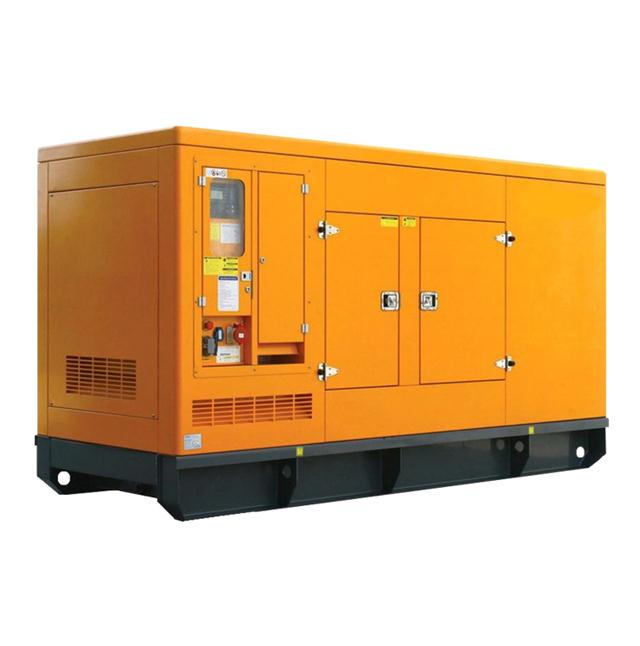

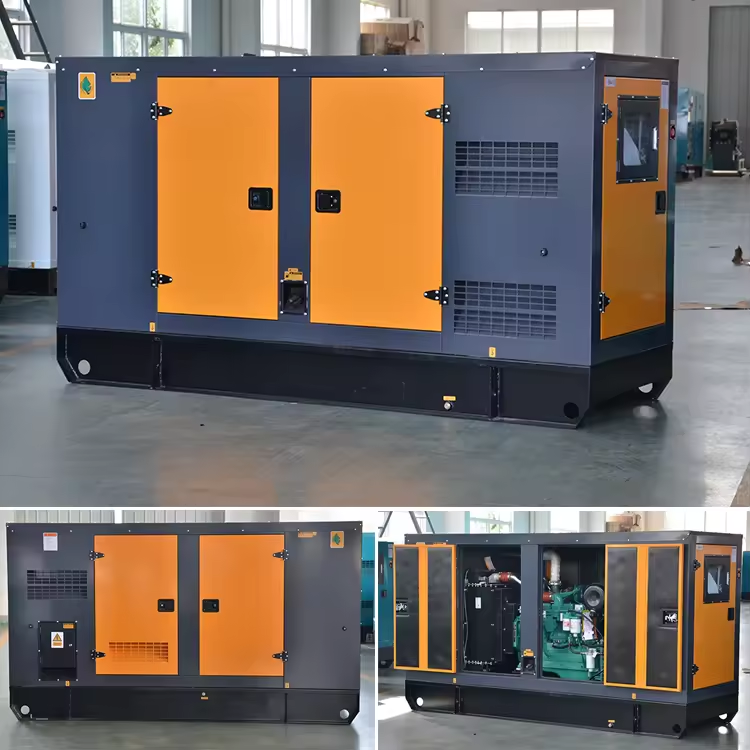

We manufacture diesel and gas generator sets from 125 kVA to 3000 kVA, in open frame, sound-attenuated, container and trailer-mounted configurations, and we deliver to customers in more than 60 countries. Our manufacturing is certified to ISO 9001:2015, ISO 45001:2018 and ISO 14001:2015, and our test facility includes a load bank rated at 2000 kW, so sets are load tested before shipment rather than only run up.

For an Australian specification we work through the eight items above with the buyer before quoting, and we say plainly which items we can meet as standard and which require a change to the configuration. Where a project requires RCM marking and compliance with the AS/NZS installation rules, that is a scope discussion rather than an assumption, and it is better had before the order than after.

We are not the cheapest source in this market, and we do not quote as if we were. A set that is correct for a 45 °C site, correctly rated, correctly documented and serviceable for its design life costs what it costs.
