Excellence in the slightest difference
- Share
- Issue Time
- May 15,2026
Summary
The high-precision assembly process for generator sets focuses on precise part matching, standardized installation positioning.

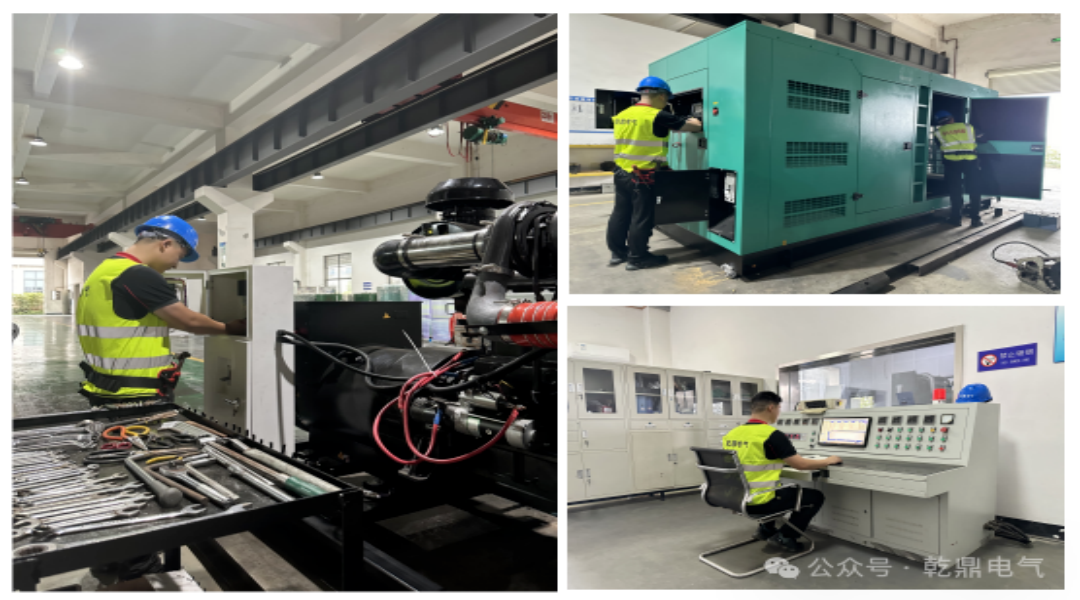

A high-performance and high-reliability diesel generator set is by no means a simple combination of an engine, a generator, and a control system. Its excellent performance and longevity stem from the extreme pursuit of precision in manufacturing. At Hunan Qian Ding Electrical Equipment Co., Ltd., we regard "assembly precision" as the lifeblood of product quality, ensuring that every unit leaving our factory is in perfect condition through a scientific and rigorous process system. So, how do we ensure the crucial assembly precision in the production process?
1 Standardized operations and high-quality teams
Process documentation visualization: Each process step is accompanied by a detailed Standard Operating Procedure (SOP), which clearly outlines the installation sequence, torque requirements, clearance standards, and tools used for each component through graphics, videos, and other forms. Operators do not need to rely on "experience" to guess, but strictly follow the standards.
Professional technician training and certification: Our assembly technicians have undergone rigorous pre-job training and regular assessment and certification. They are not only familiar with the process flow, but also deeply understand the impact of each bolt torque and each alignment deviation on the long-term operation of the unit.
2 Precise control of key processes
(1) Engine generator docking: This is a "heart surgery" for unit assembly, with the highest precision requirements. High precision flange positioning: Use specialized fixtures to ensure that the mating surface between the generator and the engine flywheel housing flange is clean and flawless, and the positioning pin holes are accurately aligned. Laser alignment system: This is the core technology to ensure accuracy. We use advanced laser alignment instruments to detect the concentricity of the engine crankshaft and generator rotor. By precise measurement and adjustment at the micrometer level, ensure that both rotate in a straight line. Thoroughly eliminating abnormal vibrations, bearing wear, and shaft seal leakage caused by misalignment is the key to ensuring the 20-year lifespan of the unit.
(2) Fastener torque management: Say goodbye to the feeling of "pneumatic wrench": all key connection parts (such as engine mounts, shock absorbers, high-pressure oil pipes, exhaust pipe flanges, etc.) are tightened using preset torque hydraulic wrenches or digital electric torque wrenches. Data traceability: The torque values of important bolts will be recorded and included in the unit file to ensure that the tightening force of each bolt is accurate, consistent, and traceable, preventing looseness caused by over looseness or deformation of internal parts caused by over tightening.
(3) Pipeline and wiring harness layout: modularity and standardization: Fuel pipes, coolant pipes, ventilation pipes, etc. are all made of prefabricated parts and standard joints to reduce on-site processing errors. Tooling installation: Use specific fixtures such as pipe clamps and wire harness fixing plates to ensure that the pipeline and wire harness are aligned and securely fixed, avoiding interference and friction with moving parts, and eliminating the risk of leakage or short circuit caused by vibration.
3 Whole-process quality inspection
Self-inspection: Operators conduct self-inspection immediately after completing the current process. Mutual inspection (QC patrol inspection): Full-time quality inspectors (QC) conduct patrol inspections on the production line, using precision instruments (such as dial indicators, torque calibrators, and laser alignment instruments) to conduct spot checks and rechecks on key workstations. Special inspection: Quality gates are set up at important nodes (such as completion of alignment and final assembly), and only after the signature and confirmation of the quality inspector can the process proceed to the next step.
The obsession with assembly accuracy is a commitment to every customer. NovArk firmly believes that only by taking every detail to the extreme can stable and pure power be output at the moment of pressing the start button; Only in times of emergency can we shoulder the responsibility of safeguarding the continuity of customer business.
